网关 GW3552B

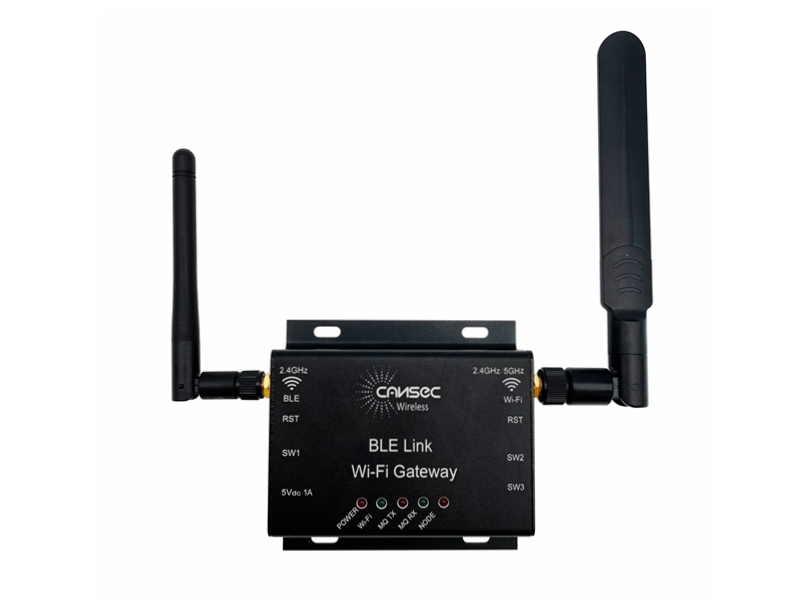

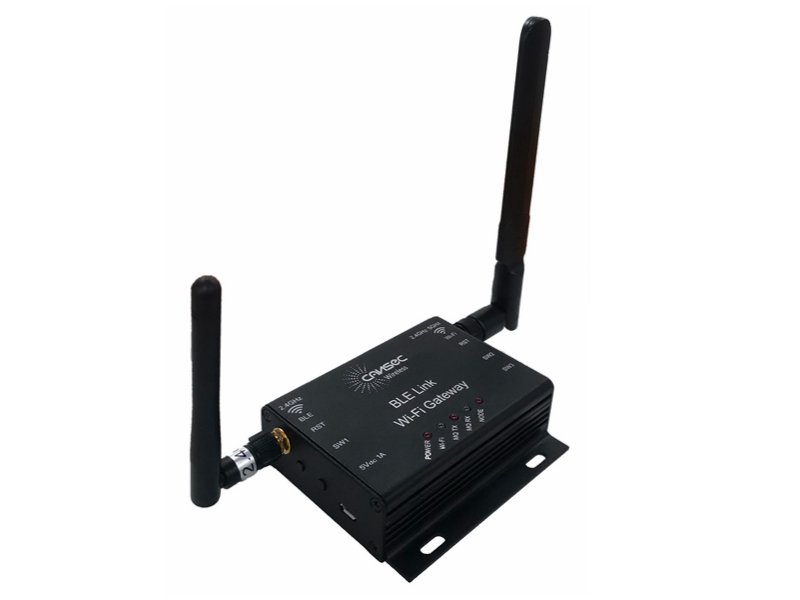

GW3552B is powerful WIFT+BLE gateway, GW3552B supports 2.4GHz/5G WIFI access to the network, and can achieve mutual conversion between Bluetooth low energy and MQTT protocols. Customers can remotely obtain data from low energy Bluetooth devices through Internet applications.
BUY NOW
Features
Support docking with customers' own MQTT server
Support broadcast name, signal strength, UUID, MAC address,
Support custom configuration of Bluetooth scan window
Support AT command to configure Bluetooth gateway parameters
Support most WIFI encryption methods and algorithms, WAP2-PSK/WAP-PSK, encryption type TKIP/AES
Applications
Smart campus: campus resumption body temperature monitoring system, student positioning, check-in
Smart medical treatment: infusion monitoring and early warning system, body temperature monitoring system, patient positioning, health monitoring
Smart elderly care: health monitoring and early warning, elderly positioning
Smart factory: asset monitoring, personnel positioning
Smart City: Environmental Monitoring
Smart agriculture and animal husbandry: livestock positioning, livestock identification, greenhouse temperature and humidity monitoring
More scenes are waiting for you to discover...
Processor and system
Main control chip: CC3235
Communication protocol: MQTT Internet of Things communication protocol (based on TCP/IP)
